Description

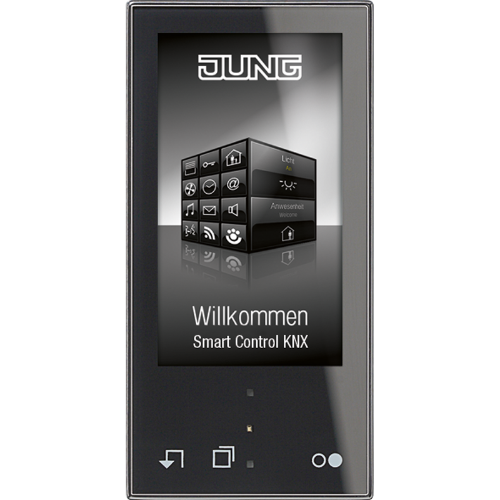

Smart Control KNX

Smart Control KNX can be extended by means of a push-button extension module, ref.-no.: 409 x TSEM

Intended use

Operating loads and displaying the status of systems and information e.g. light switching, dimming, controlling blinds/shutters, temperature and consumption values etc.
Operation with power supply (ref.-no.: NT 2405 VDC or NT 2415 REG VDC)
Installation indoors in 2 flush-mounted appliance boxes according to DIN 49073

Illuminated programmable colour screen TFT, 800 x 480 pixels, 16.7 million colours, WVGA
Vertical installation flush with the wall
Capacitive touchscreen, operation via touch directly on the glass surface
Integrated card reader for microSD cards (for future extensions)
Integrated loudspeaker (for future extensions)
External loudspeaker module connectable (accessory, for future extensions)
Insert with KNX module
External push-button extension module connectable (via KNX module)
Operating functions switching, dimming, controlling blinds, valuators, calling up light scenes, etc.
Integrated room temperature sensor
Integrated brightness sensor
Room temperature control with setpoint value specification
Display of room temperature, setpoint temperature and outdoor temperature, time and weekday etc.
