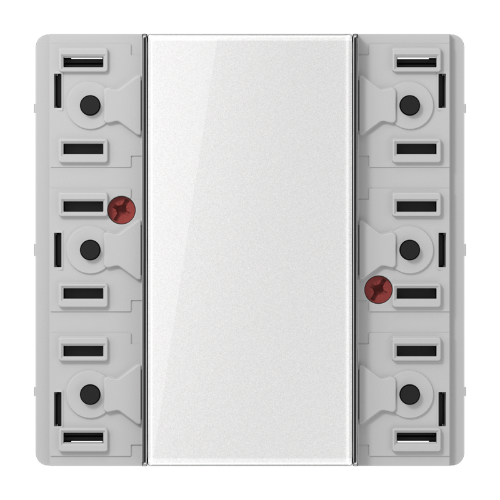

Universal push-button module 3-gang
Part Number: LS5093TSM
Trade Price: £0.00
Price: £137.84
Description
Universal push-button module, 3-gang
Push-button module includes transparent cover ref.-no.: LS 50 NA
For cover kit 3-gang, complete, ref.-no.: xx 503 TSA xx in the LS range
Can be extended by means of a push-button extension module, ref.-no.:LS 509x TSEM
ETS product family: Push-button
Product type: 3-gang push-button
Intended use
- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc
- Installation in flush-box according to DIN 49073
Product characteristics
- Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc
- One or two functions per button
- To be completed with cover kit
- Inscription field can be illuminated
- One status LED per button, red, green or blue, adjustable
- One operation LED as orientation light and programming status - red, green or blue, adjustable
- Brightness of status LED, operation LED and inscription field adjustable, can be changed during operation, e.g. during night times
- Measurement of room temperature
- Extension unit for room temperature controller
- Inhibit function: Inhibit or function mode change of single or all button functions
- Alarm function, optional acknowledge by pressing any button
- Energy saving mode
- Integrated bus coupling unit
- Connection for a push-button extension module, 1-4 gang
- Transparent cover kit (included) for temporary site use without design covers
Optional Accessories
Neutral cover ref.-no.: LS 50 NA W, LS 50 NA WW, LS 50 NA LG, LS 50 NA SW, AL 50 NA-L, ES 50 NA-L, AL 50 NA AN-L, ME 50 NA C-L, ME 50 NA AT-L, ME 50 NA D-L
