Description
Touch&See control and display unit
Description

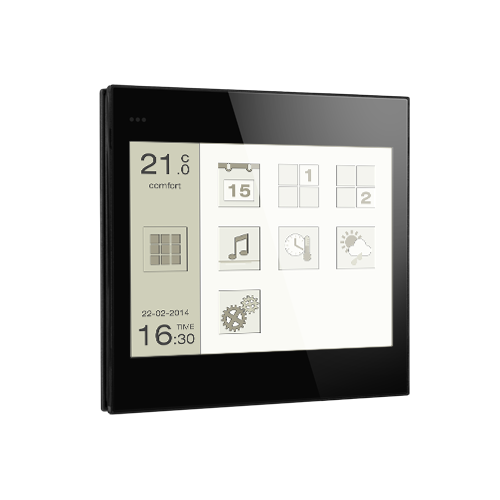

ekinex® Touch&See is a KNX S-Mode device for switching,
controlling and displaying bus functions. It is equipped
with an integrated KNX bus communication module and
is designed for wall installation on flush mounting box.
Through a 3,5†touch-screen and a user interface organized
in a sequence of graphical pages, it is possible to
control and monitor KNX actuators and display information
received from KNX actuators and sensors in a simple
and intuitive way. The device can also operate as a room
temperature controller receiving values from up to 4 KNX
temperature sensors. The device is powered by the KNX
bus line and requires an auxiliary power supply 30 Vdc
SELV.
Main functional characteristics
Depending on the version, the device can be programmed
to carry out a set of different functions such as:
• room chronothermostat for 4 independent zones
• ON/OFF switching of single loads or groups of loads
• dimming of lighting devices
• control of motor drives (for roller shutters, blinds, curtains,
etc.)
• displaying of the status of auxiliary contacts (from safety/security
devices, etc.)
• displaying of time and date of the internal clock or sent
by a KNX timer
• displaying of values sent by a KNX wheather station
such as temperature, wind speed, rain presence,
brightness, etc.
• displaying of alarm messages
• recalling and saving of scenes
• sending on the bus of values (temperature, brightness,
etc.);
• locking of the functions through password
• temporary block for screen cleaning.
