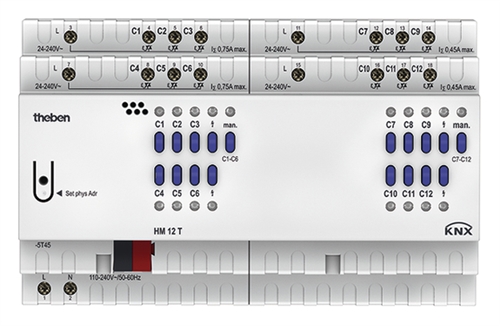

HM 12 T KNX

12-way heating actuator FIX2
With 12 temperature controllers (P/PI) for heating and cooling
For controlling 12 thermal actuators 24 V - 240 V AC in 4 groups with 3 outputs and 450 mA each
(Due to the switch-on behaviour of the actuators, we recommend not to exceed a maximum load of 3x1 actuators 24 V AC or 3x5 actuators 230 V AC)
Short-circuit-proof and overcharge protected
Continuous or switching actuating value selectable
Valve protection function can be deactivated
With the modes: comfort, standby, night as well as frost/heating protection
Changeover to summer mode possible
LED switching status display for each channel
Manual operation on device (even without bus connection)
