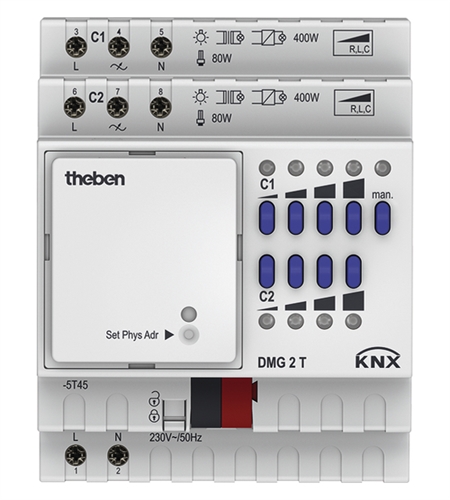

DMG 2 T KNX

2-way universal dimmer actuator MIX2
Base module MIX2
Can be upgraded to maximum of 6 channels
For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
Also suitable for dimming of dimmable energy-saving lamps
Also suitable for controlling fans
Up to two extension modules MIX or MIX2 can be connected to one base module
Device and KNX bus module can be swapped independently of each other
Removable KNX bus module enables devices to be changed without reprogramming
Manual set-up and use of switching actuators is possible without KNX bus module
LED switching status display for each channel
Manual operation on device (even without bus connection)
Dimming output: 400 W/VA per channel or 800 W/VA in parallel operation
The dimming output can be upgraded by using additional dimmboosters "DMB 1 T KNX" - dimming output 300 W/VA for each dimmbooster. Output to a maximum of 2000 W/VA by using max. 4 boosters possible
Automatic load detection (can be deactivated)
For R, L and C loads
