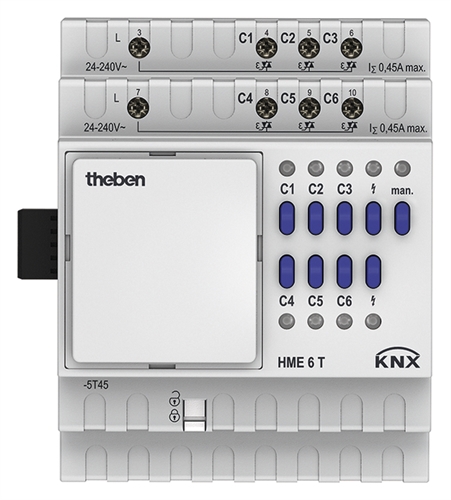

HME 6 T KNX

6-way heating actuator MIX2
With 6 temperature controllers (P/PI) for heating and cooling
Extension module MIX2
For upgrading to maximum of 18 channels
For controlling 6 thermal actuators 24 V - 240 V AC in 2 groups with 3 outputs and 450 mA each
(Due to the switch-on behaviour of the actuators, we recommend not to exceed a maximum load of 3x1 actuators 24 V AC or 3x5 actuators 230 V AC)
Short-circuit-proof and overcharge protected
Continuous or switching actuating value selectable
Valve protection function can be deactivated
With the modes: comfort, standby, night as well as frost/heating protection
Changeover to summer mode possible
Up to two extension modules MIX or MIX2 can be connected to one base module
Device and KNX bus module can be swapped independently of each other
Removable KNX bus module enables devices to be changed without reprogramming
Manual set-up and use of actuator is possible without KNX bus module
LED switching status display for each channel
Manual operation on device (even without bus connection)
