Description

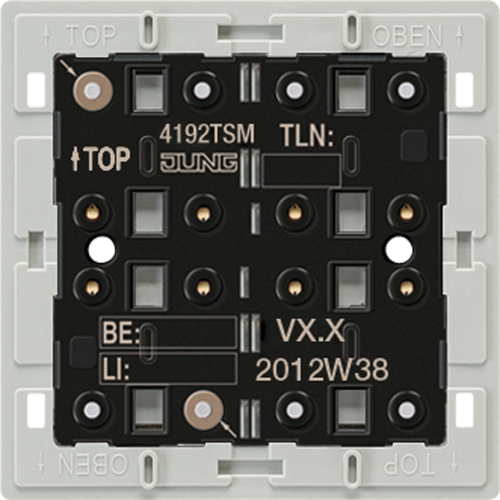

Universal push-button module, 2-gang
Compatible with the cover kit 2-gang, complete, ref.-no.:
xx 402 TSA xx
Compatible with the cover 2-gang with symbols, ref.-no.: xx 402 TSAP xx
Can be extended by means of a push-button extension module, ref.-no.: 409x TSEM
Adapter frames are included in delivery: ref.-no. LS 4 AR for LS range (pre-mounted) and ref.-no. CD 4 AR for CD range. AS / A ranges without adapter frame.
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Push-button
Product type: 2-gang push-button
1 blue LED: operation indication
4 red LED: status indication
Intended use
-
Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc
-
Installation in flush-box according to DIN 49073
Product characteristics
-
Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc
-
Measurement of room temperature
-
To be completed with cover kit
-
Two red status LED per button
-
One blue operation LED as an orientation light and to indicate the programming status
-
Integrated bus coupling unit
-
One, two or three functions per button
-
Push-button function or rocker function, vertical or horizontal
-
Connection for a push-button extension module, 1-4 gang
-
Transparent cover kit (included) for temporary site use without design covers
