Description

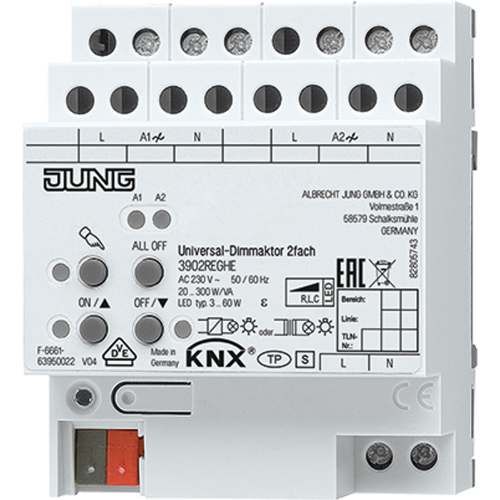

LED universal dimming actuator, 2-gang
2 x 300 W, HV LED lamps typ. 2 x 3 ... 60 W
Rail mounting device, 4 rail units
ETS product family: Illumination
Product type: Dimmer
Intended use
- Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV-LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps
- Mounting on DIN rail according to EN 60715 in distribution boxes
Product characteristics
- Automatic or manual selection of the dimming principle suitable for the load
- Protected against no-load, short-circuit and overheating
- Signal in the event of a short-circuit
- Outputs can be operated manually
- Feedback of the switching position and the dimming value
- Parameterisable switch-on and dimming behaviour
- Time functions: switch-on delay, switch-off delay, staircase lighting timer with run-on time
- Light scene operation
- Disabling of individual outputs manually or by bus
- Status indicator of the outputs via LED
- Operating hours counter
- Mains failure longer than approx. 5 seconds leads to switch-off of the dimmer actuator
- Depending on the parameter setting, the connected load is calibrated after resumption of power supply
