Description
Security Terminal, 2-fold

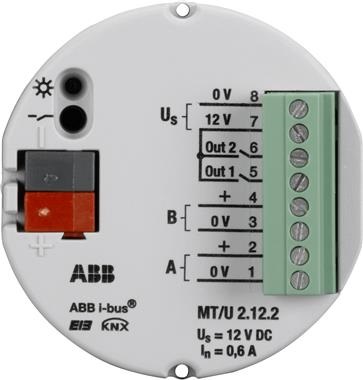

Security Terminal MT/U 2.12.2 is used
as the interface between security technology
sensors and the KNX.
The device features 2 inputs, so-called
zones. They are used for monitoring
connected passive detectors, e.g.
magnetic contacts and/or glass break
sensors on the ABB i-bus® KNX
and/or for connection of floating
contacts in applications with enhanced
security requirements.
The device can be used as a system
with autonomous alarm logic or in
combination with the Security Module
or an Intrusion Alarm Panel with KNX
interface.
The device is flush mounted in an
installation box 55 mm.
A 12 V DC SELV auxiliary voltage
supply is required,
e.g. NTU/S 12.2000.1.
Typical applications include the monitoring
of door and window opening,
the detection of glass breaks as well
as monitoring of rooms using motion
detectors.
