Description
Security Terminal, 8-fold

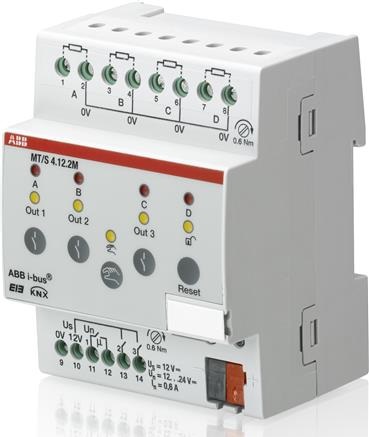

Security Terminal MT/S 4.12.2M is a
modular installation device (MDRC) in
ProM design. It is intended for installation
in the distribution board on 35 mm
mounting rails and is used as the
interface between security technology
sensors and KNX. The device features
4 inputs, so-called zones. They are
used for monitoring connected passive
detectors, e.g. magnetic contacts
and/or glass break sensors on the
ABB i-bus® KNX and/or for connection
of floating contacts in applications with
enhanced security requirements.
The device can be used as a system
with autonomous alarm logic or in
combination with the Security Module
or an Intrusion Alarm Panel with KNX
interface.
A 12 V DC SELV auxiliary voltage supply
is required, e.g. NTU/S 12.2000.1.
Typical applications include the monitoring
of door and window opening,
the detection of glass breaks as well
as monitoring of rooms using motion
detectors.
