Description

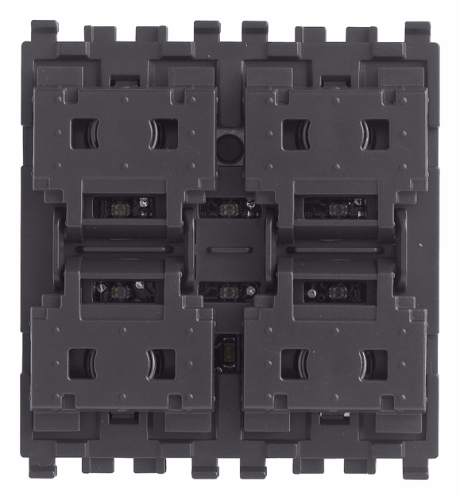

Eikon 4-button KNX device
Device with four independent push button, KNX standard,
visible in darkness, to be completed with half-button caps.
The device is equipped with four independent buttons that can be used for
switching ON/OFF, controlling roller shutters and adjusting lights.
CHARACTERISTICS
- Supply voltage: BUS 30 V d.c. SELV
- Absorption: 10 mA
- Terminals: TP bus
- Operating temperature: -5 °C - +45 °C (inside).
CONFIGURATION
The configuration of the device, physical address and parameters takes place
through the ETS software.
If the input/output device is loaded with an incorrect ETS application, the LED will
flash (“device type†error).
To restore the desired configuration, load the device with the correct ETS application.
OPERATION
The device can be used in two different modes:
- Functions with independent push-buttons:
- Send ON, send OFF, timed ON.
- ON and OFF switch on the up and down side.
- Call up scenario, save scenario.
- Send value.
- Dimmer control.
- Toggle.
- Functions with 2 associated channels:
- ON/OFF switch.
- Dimmer control.
- Roller shutter control.
