PlanoSpot 360 KNX DE WH
Part Number: 2039100
Trade Price: £0.00
Price: £174.01
Description
PlanoSpot 360 KNX DE WH
-

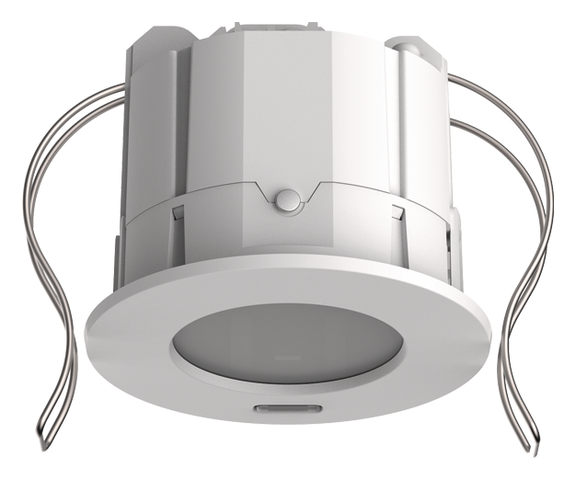

Passive infrared presence detectors for ceiling installation
-
Flat design with interchangeable cover frame in different colors
-
Square detection area 360° (up to 64 m2) for reliable and easy planning
-
Automatic presence- and brightness-dependent control for lighting and HVAC
-
Two differently sized detection zones for greater flexibility. Adjustable via parameters or remote control.
-
Manual alignment of the detection area (swivel mechanism)
-
Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
-
3 directed light measurements
-
2 light channels C1, C2 with 2 light measurements and additional lighting channel C3 without brightness factor
-
Switched or constant light control with 2 independent control systems and standby function (orientation light)
-
Switching mode with dimmable lighting
-
Fully or semi-automatic
-
Brightness switching value or set point value can be set in lux by using parameters, the object or via remote control
-
Teach-in of the brightness switching value or the set point value
-
Light time delay configurable
-
Self-learning time delay can be set using parameters, object or via remote control
-
Reduction of time delay when present briefly (short-term presence)
-
Manual override by telegram or remote control
-
2 presence channels C4, C5, individually configurable
-
Switch-on delay and time delay configurable
-
Room monitoring with selective movement detection
-
Setting the room correction factor for brightness measurement comparison
-
Configurable sensitivity
-
Extremely simple setting of the energy-saving ratio with the new «eco plus» function
-
Test mode for checking function and detection area
-
Scenarios
-
Parallel switching of multiple presence detectors (Master/Slave or Master/Master)
-
Installation in false ceilings with springs
-
Surface mounting on ceilings possible with the AP-frame (optional)
-
User remote control «theSenda S» (optional)
-
Management remote control «SendoPro» (optional)
-
Installation remote control «theSenda P» (optional)
