Description

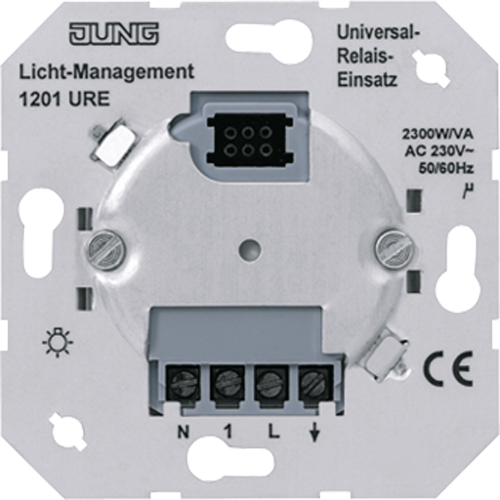

Universal relay switch insert 1-channel

Important: Energy saving lamps cause high inrush currents which may cause the switch contact to get stuck. Then a reduction of capacity is required! Please check suitability of lamps before installation.
Connection of satellite units (combinations possible):
Satellite insert "2-wire", ref.-no.: 1220 NE
Centre plate (ref.-no.: xx1561.07xx) has same functionality as on relay insert
Number of satellite units: unlimited
Total length of satellite cables: max. 100 m

Mechanical push-buttons (make contact, not illuminated)

Short operation: On / Off
Number of satellite units: unlimited
Total length of satellite cables: max. 100 m
Note: Satellite operation is only possible, when a "cover" (centre plate, automatic switch or other suitable cover) is placed on the main unit.
Illuminated mechanical push-buttons must have a separate N-terminal.

Satellite insert "3-wire", ref.-no.: 1223 NE

In combination with automatic switch ref.-no.: xx 1180xx, xx1180-1xx, xx1280xx, xx1280-1xx, presence detector ref.-no.: PMU 360 xx or ceiling automatic switch ref.-no.: DAW 360 xx

The main unit must likewise be operated with an automatic switch, presence detector or ceiling automatic switch. Otherwise there is no function!

Number of satellite units: max. 10
Total length of satellite cables: max. 100 m

Centre plates:

Standard centre plate: xx 1561.07 xx
Universal centre plate: xx 1561.07 U xx
eNet radio centre plate: FM xx 1561.07 xx
Standard automatic switch 180, 1.10 m: xx 1180 xx
Universal automatic switch 180, 1.10 m: xx 1180-1 xx
Standard automatic switch 180, 2.20 m: AS xx 1280 xx
Universal automatic switch 180, 2.20 m: AS xx 1280-1 xx
Ceiling automatic switch: DAW 360 xx
Presence detector universal: PMU 360 xx
